Processing details

Brainana adapts its pipeline depending on what data and metadata are available and on the configuration you provide. For example, anatomical synthesis runs only when multiple T1w/T2w runs or sessions are present and synthesis is enabled; slice timing correction runs only when slice timing information is available in the BIDS metadata.

This page describes the methods used at each stage of the pipeline and links to related anatomical and space-tracking details.

1. BIDS discovery and job creation

Before the Nextflow workflow runs, a Python discovery step scans the BIDS dataset and produces structured job descriptors.

• Purpose: Determine what data are available and which processing branches should run (e.g. whether anatomical synthesis is needed, whether functional runs have slice timing metadata).

• Methods: Deterministic layout/metadata scan using BIDS entities and configuration. Discovery evaluates whether anatomical synthesis is needed and decides synthesis type/level (session vs. subject) from config. There are no imaging algorithms at this stage.

2. Anatomical processing

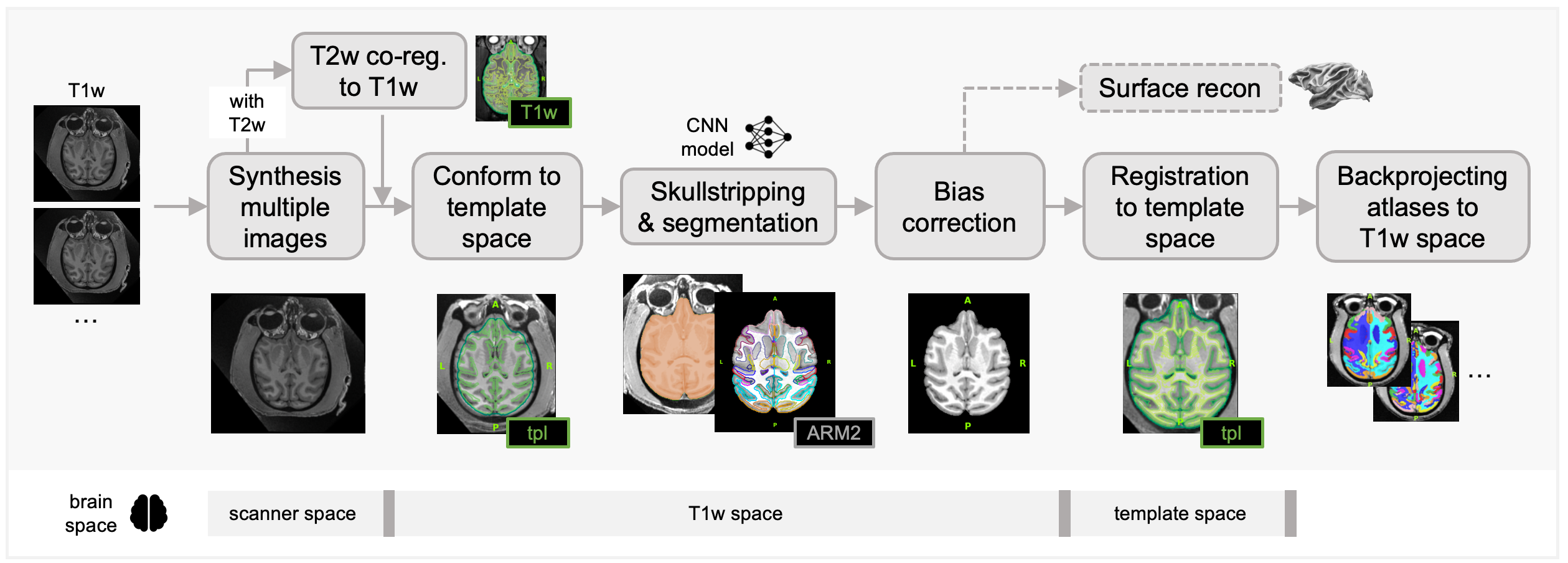

The anatomical branch turns raw (or synthesized) T1w/T2w images into bias-corrected, skull-stripped, and template-registered images, and optionally segmentations and cortical surfaces. These outputs provide the anatomical reference for T2w and functional workflows.

2.1 Anatomical synthesis (multiple T1w/T2w)

When multiple T1w or T2w images exist per session or per subject, Brainana can synthesize a single anatomical reference.

• When: Multiple T1w or T2w per session or subject (configurable synthesis level).

• Method: The first image (by lexicographic order) is used as the fixed reference. Each other image is rigidly coregistered to the reference using ANTs (antsRegistration with a rigid transform). All coregistered images, including the reference, are averaged in the reference space.

2.2 Conform to reference

• Purpose: Align the brain to reference space (orientation and grid) so that subsequent registrations and resamplings are well-defined.

• Method:

  1. Skull-strip the input with nhp_skullstrip_nn (UNet) or use an existing brain mask when skull stripping is disabled.

  2. Resample the template to match the input resolution if needed.

  3. Run FSL FLIRT (rigid, 6 DOF) from the brain-extracted input to the template.

  4. Use AFNI 3dresample to ensure template and input share a consistent grid.

  5. Apply the FLIRT transform back to the full-head anatomical.

2.3 Skullstripping and segmentation

• Purpose: Provide brain mask and atlas/tissue segmentation for masking, bias correction, registration, and optional surface reconstruction.

• Method: fastsurfer_nn (FastSurfer-style CNN segmentation) is fine-tuned on macaque anatomical MRI with CHARM and SARM level 2 atlases (ARM2 parcellation). The network produces an atlas-labelled segmentation, from which a brain mask and optional hemisphere masks are derived.

2.4 Bias field correction

• Purpose: Correct intensity non-uniformity (INU) in anatomical images.

• Method: N4 bias field correction (ANTs N4BiasFieldCorrection) is run on the anatomical image, with the brain mask from segmentation optionally provided to restrict correction to brain tissue.

2.5 Registration to template

• Purpose: Map anatomical data to a standard template space (for example, NMT2Sym).

• Method: Multi-stage ANTs registration:

  • Translation → rigid → affine → optional SyN.

  • Metrics (e.g. mutual information, cross-correlation, Mattes), gradient steps, shrink factors, convergence criteria, and smoothing schedules are configurable.

  • When GPU resources and FireANTs are available, the SyN stage can be run with FireANTs.

2.6 T2w to T1w coregistration

When T2w data are present, Brainana can coregister T2w to the preprocessed T1w:

• Method: ANTs rigid registration from T2w to preprocessed T1w.

2.7 Surface reconstruction

Surface reconstruction is an optional and resource-intensive step.

• Purpose: Build cortical surfaces and morphological measures (e.g. thickness, area, curvature).

• Inputs: Preprocessed anatomical, segmentation and brain mask.

• Method: fastsurfer_surfrecon is a modified version of FastSurfer’s recon_surf pipeline. It orchestrates FreeSurfer volume stages (bias correction, Talairach transform, normalization, WM segmentation) and surface stages (tessellation, smoothing, inflation, topology fixing, atlas parcellation, morphometry).

• Requirements: A valid FreeSurfer license is required when this step is enabled.

3. Functional processing

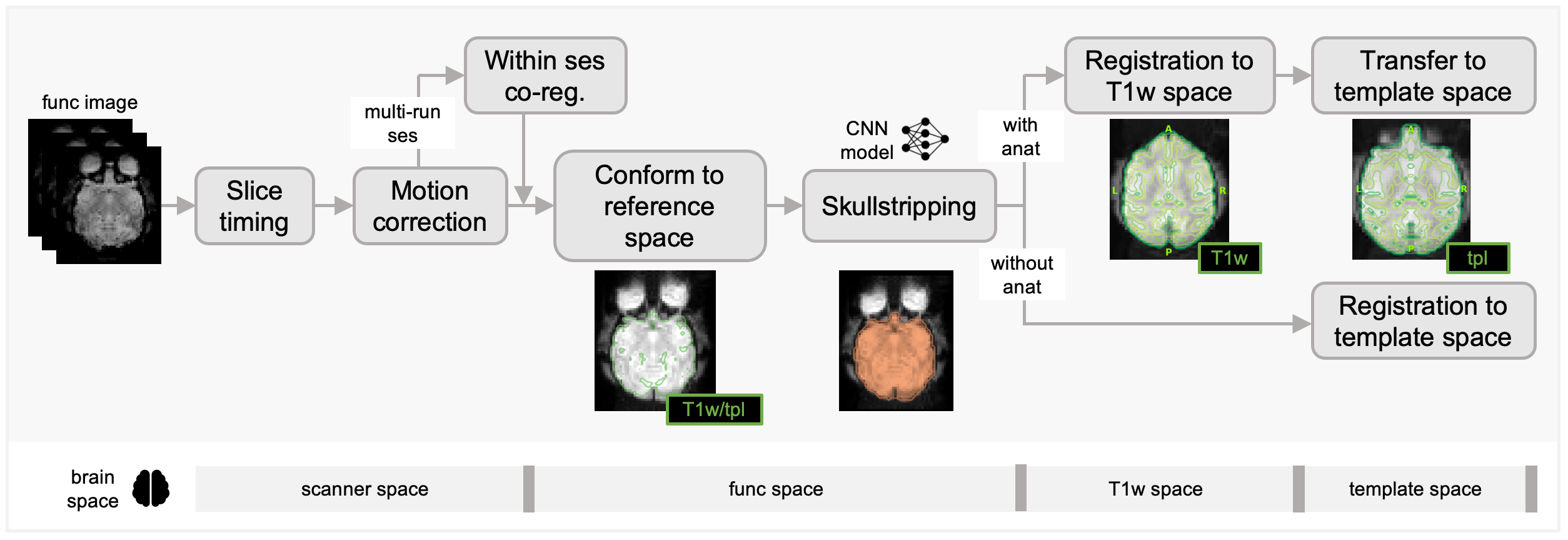

The functional branch preprocesses fMRI data and produces motion-corrected, optionally slice-time-corrected, despiked, bias-corrected, and skullstripped fMRI in native or template space, with associated transforms and QC outputs.

The workflow is conceptually split into:

• Time-series steps: Slice timing (if available) → motion correction and temporal mean → within-session coregistration and session-averaged temporal mean.

• Compute on temporal mean: Bias correction → conform → brain mask (UNet) → registration to anatomical or template.

• Apply to 4D: Apply conform and registration transforms to the 4D fMRI and brain mask.

3.1 Slice timing correction

When slice timing information is available in BIDS metadata, Brainana applies slice timing correction.

• Purpose: Align voxel time series in time according to the slice acquisition order.

• Method: AFNI 3dTshift is used to shift slices in time to a reference (typically the middle of the TR). Slice timing pattern (e.g. alt+z, seq+z) is derived from the BIDS SliceTiming and SliceEncodingDirection fields. If slice encoding is not along the z axis, data are swapped to z for 3dTshift and swapped back afterwards.

• Control: This step can be disabled in configuration or skipped when slice timing metadata are missing.

3.2 Motion correction

• Purpose: Realign fMRI volumes to correct for subject motion.

• Method: FSL mcflirt performs volume realignment with 6 DOF. The reference volume is either a user-specified timepoint, the middle volume, or a temporal mean (via fslmaths -Tmean or fslroi). Outputs include motion-corrected 4D fMRI, motion matrices, and motion parameters (TSV).

• Short runs: For very short runs (e.g. fewer than 15 volumes), motion correction can be skipped, and pass-through outputs (including a temporal mean and zero-filled motion parameters) are generated.

3.3 Within-session coregistration

When multiple fMRI runs exist per session, an optional within-session coregistration step can align runs to a common reference and produce a session-averaged temporal mean.

• Purpose: Improve stability of the temporal mean used for bias correction, conform, and registration.

• Method: Rigid registration from each run’s temporal mean to a reference run’s temporal mean, using ANTs or FSL FLIRT as configured, followed by applying the transform to the 4D fMRI and mask.

3.6 Bias correction

• Purpose: Improve downstream registration by correcting low frequency intensity inhomogeneity in the reference temporal mean fMRI image only. Bias correction is not applied to the full 4D timeseries, preserving the original temporal signal for subsequent analyses.

• Method: N4 bias field correction (ANTs N4BiasFieldCorrection) is applied to the temporal mean of the motion-corrected fMRI (and to anatomical images in the anatomical workflow). Before N4, intensities may be rescaled to a non-zero mean of 100 (configurable), and any negative voxels are clamped to zero with a warning (N4 uses log-domain math). Anatomical bias correction uses a brain mask from skull stripping so background zeros are excluded from the histogram; functional bias correction runs earlier in the pipeline (before conform/skull strip) and therefore has no brain mask at this step—background zeros may remain in the image.

3.7 Conform and skull stripping

• Conform: The functional temporal mean is conformed to the chosen template using the same strategy as anatomical conform: nhp_skullstrip_nn on the mean, FSL FLIRT rigid registration to the template, resampling with AFNI 3dresample, and application of the transform (optionally composed with anatomical transforms).

• Skull stripping: A UNet-based functional skull-stripping model (nhp_skullstrip_nn EPI model, derived from NHP-BrainExtraction/DeepBet) is run on the temporal mean to obtain a brain mask, which is then applied to the 4D fMRI.

3.8 Registration

• Method: ANTs registration (rigid, affine, or SyN as configured) from the mean functional image to the preprocessed anatomical or directly to the template. Composite transforms are applied to the 4D fMRI and brain mask with antsApplyTransforms (e.g. BSpline interpolation for fMRI).

• Outputs: Preprocessed fMRI and mask in anatomical or template space, plus motion and other confounds for downstream analysis.

4. Summary table

Domain	Step	Main tool / method
Anatomical	Synthesis	ANTs rigid + average
Anatomical	Reorient	AFNI 3dresample
Anatomical	Conform	FLIRT + nhp_skullstrip_nn + 3dresample
Anatomical	Skull strip & segment	fastsurfer_nn (FastSurferCNN fine-tuned)
Anatomical	Bias correction	ANTs N4BiasFieldCorrection
Anatomical	Registration	ANTs (optional FireANTs for SyN)
Anatomical	Surface recon	fastsurfer_surfrecon + FreeSurfer
Functional	Slice timing	AFNI 3dTshift
Functional	Reorient	AFNI 3dresample
Functional	Motion correction	FSL mcflirt
Functional	Within-session coreg	ANTs or FLIRT
Functional	Bias correction	ANTs N4BiasFieldCorrection
Functional	Conform / skull strip	FLIRT + nhp_skullstrip_nn + 3dresample
Functional	Registration	ANTs (optional FireANTs for SyN)

For outputs and directory layout, see Outputs.

• Anatomical selection for functional processing
• Space tracking and transforms
