Space tracking and transforms

Brainana tracks each image through a series of coordinate spaces and writes an explicit transform file for every space transition. The diagram below shows all spaces and named transforms for the T1w, T2w, and BOLD modalities.

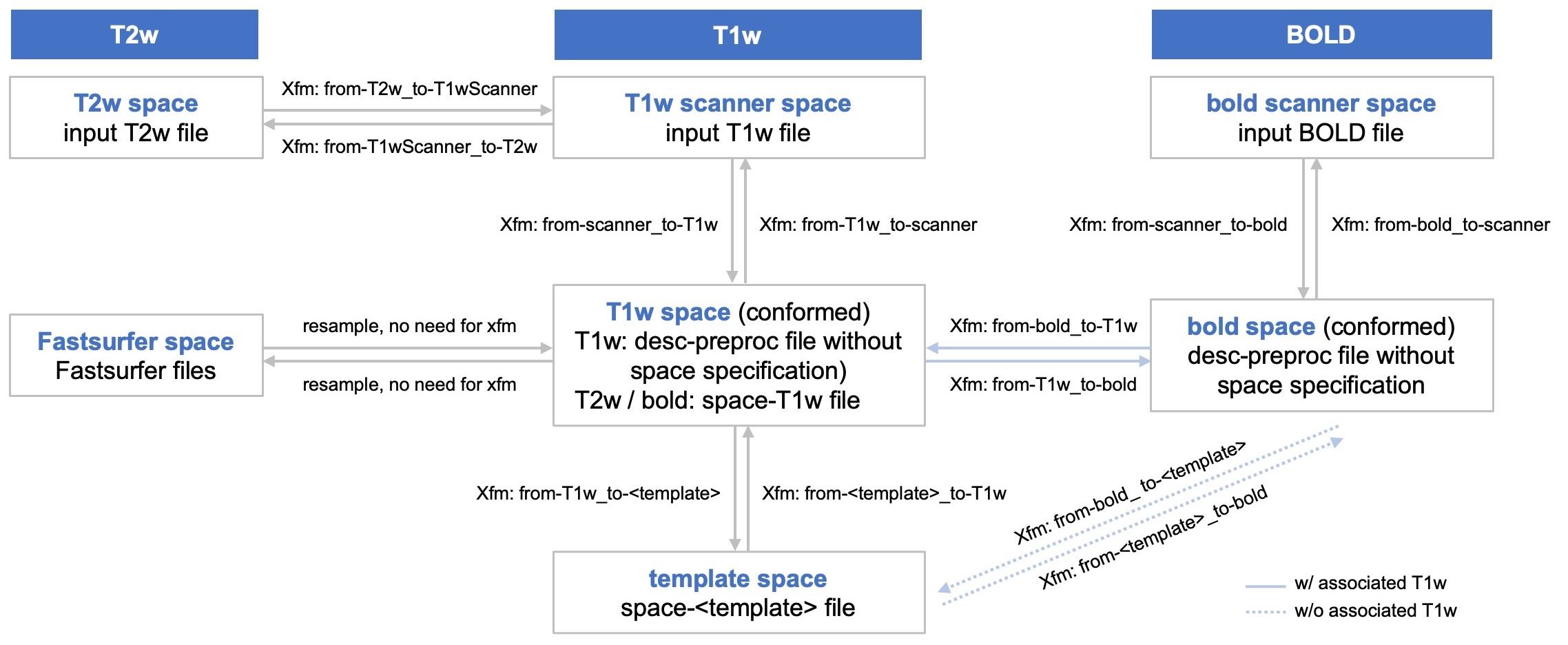

Space tracking diagram showing coordinate spaces and transforms for T1w, T2w, BOLD, Fastsurfer, and template spaces.

  • Scanner space (T1w and BOLD native acquisition) uses the BIDS entity space-scanner. T1w synthesis outputs and atlas backprojection to native grid use this label.

  • T1w is conformed to the template grid (from-scanner_to-T1w), then registered to template space (from-T1w_to-<template>). Preprocessed T1w in conformed space is published as space-T1w_desc-preproc_T1w.nii.gz; template outputs carry space-<template>.

  • T2w uses space-T2wScanner for native T2w synthesis, then is coregistered to T1w scanner space (from-T2wScanner_to-scanner, published as space-scanner), then brought to T1w (conformed) space by reusing the T1w conformation transform (space-T1w_desc-preproc_T2w).

  • BOLD has its own conformation transform (from-scanner_to-bold). Within-session coregistration (when enabled) stays in scanner space (space-scanner_desc-coreg_boldref). After conform, the BOLD reference in bold space is published as space-bold_boldref (session- level when coreg is enabled). Preprocessed 4D BOLD uses space-bold_desc-preproc_bold (per run). How BOLD reaches template space depends on whether a T1w anatomical is available for the session:

    • With associated T1w — template resampling is performed by composing from-bold_to-T1w with the T1w registration transform from-T1w_to-<template>; no separate bold-to-template file is written.

    • Without associated T1w — BOLD is registered directly to the template, producing dedicated from-bold_to-<template> and from-<template>_to-bold transforms.

    T1w and template BOLD outputs carry space-T1w and space-<template> respectively.

  • Fastsurfer space is reached from T1w (conformed) space by resampling only — no transform file is produced.

    When surface reconstruction is enabled, the T1w-space atlases are also projected into Fastsurfer space and onto the cortical surface (nearest neighbour throughout). These outputs use the space-fsnative entity (individual Fastsurfer/FreeSurfer surface space): resampled label volumes atlas-<name>_space-fsnative_<prefix>.nii.gz and per-hemisphere surface maps atlas-<name>_space-fsnative_hemi-<L|R>_<prefix>.func.gii, published under anat/atlas_space-fsnative/.

Transform file reference

All transform filenames follow the convention <prefix>_from-<src>_to-<dst>_mode-image_xfm.<ext>. FSL .mat files are rigid conformation transforms; ANTs .h5 files are composite registration transforms (affine ± SyN).

Modality

File (<prefix>_…)

Direction

T1w

from-scanner_to-T1w_mode-image_xfm.mat

T1w scanner → T1w

T1w

from-T1w_to-scanner_mode-image_xfm.mat

T1w → T1w scanner

T1w

from-T1w_to-<template>_mode-image_xfm.h5

T1w → template

T1w

from-<template>_to-T1w_mode-image_xfm.h5

Template → T1w

T2w

from-T2wScanner_to-scanner_mode-image_xfm.h5

T2w scanner → T1w scanner

T2w

from-scanner_to-T2wScanner_mode-image_xfm.h5

T1w scanner → T2w scanner

BOLD

from-scanner_to-bold_mode-image_xfm.mat

bold scanner → bold

BOLD

from-bold_to-scanner_mode-image_xfm.mat

bold → bold scanner

BOLD

from-bold_to-T1w_mode-image_xfm.h5

bold → T1w

BOLD

from-T1w_to-bold_mode-image_xfm.h5

T1w → bold

BOLD (w/o T1w)

from-bold_to-<template>_mode-image_xfm.h5

bold → template (direct, no associated T1w)

BOLD (w/o T1w)

from-<template>_to-bold_mode-image_xfm.h5

Template → bold (direct, no associated T1w)

Applying transforms to images

Use the demo below to choose source space, target space, and data type. It outputs the matching command.

  • Single-step paths only — the demo lists direct transforms. If you need two steps, a hint below the code will suggest the intermediate space.

  • Tool depends on the transform file:

    • .mat → flirt (FSL)

    • .h5 → antsApplyTransforms (ANTs)

    • Fastsurfer ↔ T1w → 3dresample (AFNI); no transform file, only a reference image for the target grid.

    • No tool installed? Mount your data and run the command inside the Brainana Docker image:

      docker run -it --rm \
  -v <path/to/your/data>:/data \
  liuxingyu987/brainana:<version> bash

# then run your flirt / antsApplyTransforms / 3dresample command as usual

  • Interpolation is automatic: nearest-neighbour for discrete data (labels, segmentations); trilinear for flirt and BSpline for antsApplyTransforms on intensity images.

Demo: command to apply a transform
